KDevelop

KDevelop is a free, open source IDE for all desktop platforms.

Importing the project

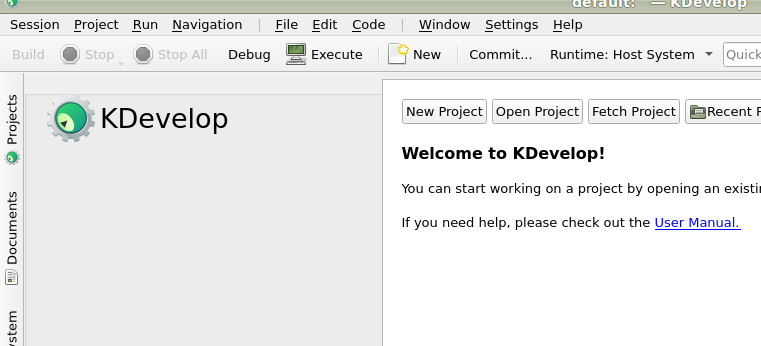

  • From the KDevelop's main screen select Open Project.

KDevelop's main screen.

  • Navigate to the Redot root folder and select it.

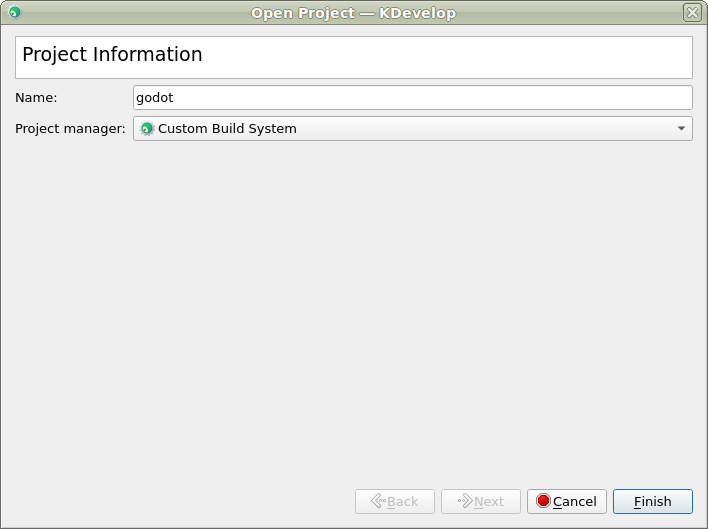

  • On the next screen, choose Custom Build System for the Project Manager.

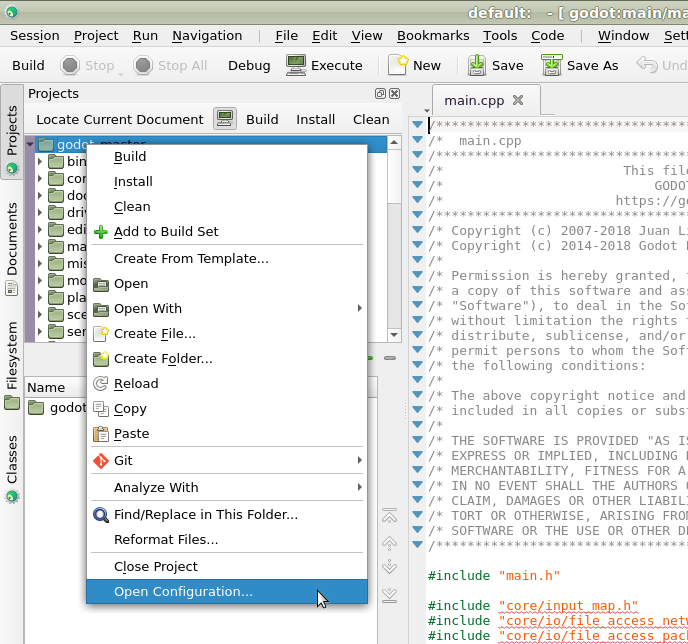

  • After the project has been imported, open the project configuration by right-clicking on it in the Projects panel and selecting Open Configuration.. option.

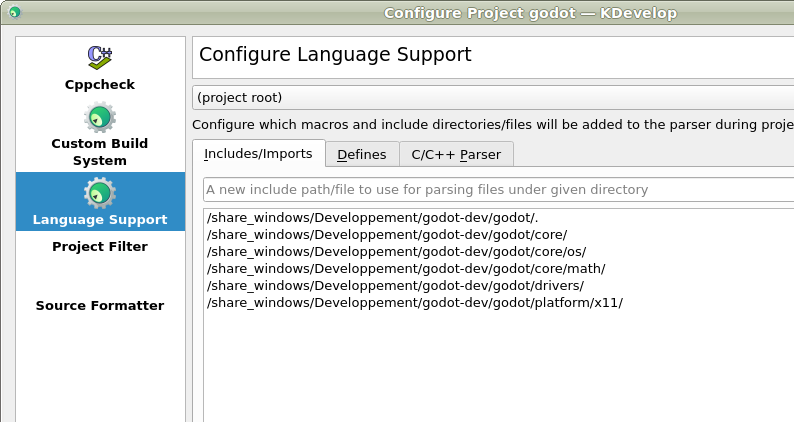

  • Under Language Support open the Includes/Imports tab and add the following paths:
.  // A dot, to indicate the root of the Redot project
core/
core/os/
core/math/
drivers/
platform/<your_platform>/  // Replace <your_platform> with a folder
                              corresponding to your current platform


  • Apply the changes.

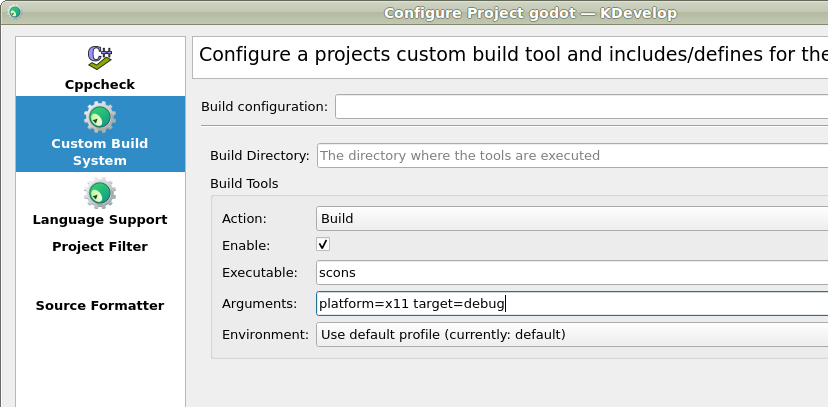

  • Under Custom Build System add a new build configuration with the following settings:
Build Directory blank
Enable True
Executable scons
Arguments See Introduction To The Buildsystem for a full list of arguments.


  • Apply the changes and close the configuration window.

Debugging the project

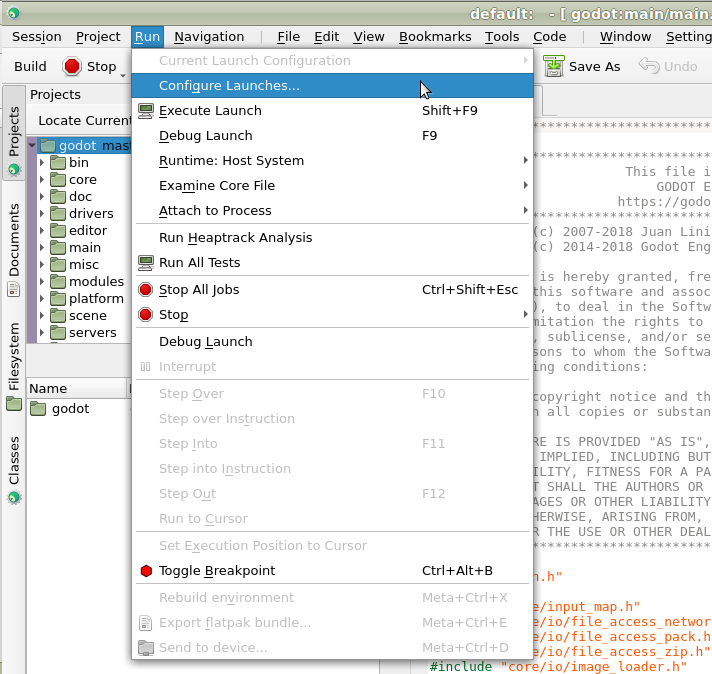

  • Select Run > Configure Launches... from the top menu.

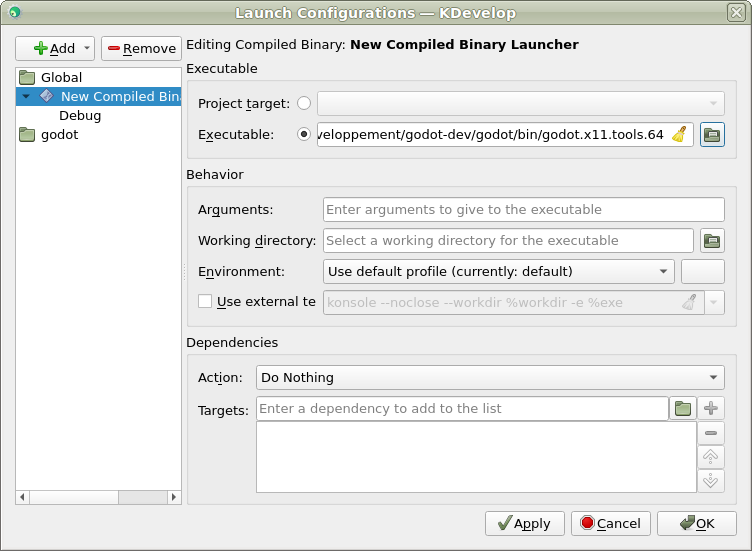

  • Click Add to create a new launch configuration.
  • Select Executable option and specify the path to your executable located in the <Redot root directory>/bin folder. The name depends on your build configuration, e.g. Redot.linuxbsd.editor.dev.x86_64 for 64-bit LinuxBSD platform with platform=editor and dev_build=yes.


If you run into any issues, ask for help in the Redot discord server.
